Glass Lifters
Excellent Solutions for Glass Installations and Facade Elements
Express Interest
Description
Manual lifting and installation of glass panels is a cumbersome and perilous task. But glass lifters have become a game changer in the construction industry by optimizing the process of glass lifting, making it hassle free. As the trusted glass lifter supplier of UAE, we provide an exclusive range of glass lifting machines equipped for the safe and efficient lift and installation of glass panels.
Vacuum glass lifters enhance the accuracy and efficiency of the glass lifting process, making them an excellent choice. Our glass lifting machines come up with high lifting capacity from 800 to 1800 kg and can operate at heights up to 28 meters. It features vacuum suction cups that ensure firm grip and movable and rotatory parts made out of high quality durable metal.
Our glass lifters are sturdy and guarantee accurate lifting services. In addition to that we also provide manual glass lifting equipment, which is designed to efficiently handle, lift and install glass lifters providing an aid for the operators who have to lift the glass panels manually.
We offer glass lifting machines to diverse industries, from manufacturing to interior designing, committed to providing the best glass lifters that suits the operation.
Its other applications in different industries include,
- Interiors : Staircases and glass partitions.
- Automotive industries : Windshields
- Construction : Glass doors, windows, facades and the like.
Glass lifters provide top-tier glass lifting machines that will reduce workdown time and maximize productivity.
Models
GBL Glass Lifters
Features
This machine can tilt up to 90 degrees, enabling a locking facility at each 22.5 degree. It can also rotate in 360 degrees and be locked in 4 positions.
Type
GBL3-250
GBL3-250
Lifting Capacity
250 kg
500 kg
Vacuum Circuit
Dual-Circuit
Dual-Circuit
Own Weight
40 kg
55 kg

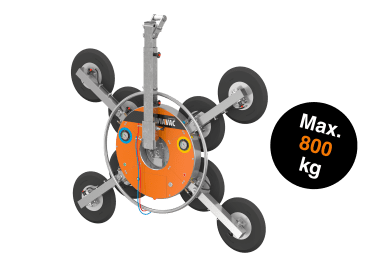

GBX Glass Lifters
Features
Can tilt up to 90 degrees and can be locked in 5 positions. It can rotate in 360 degrees and be locked in 8 positions.
Type
GBX2-800
Lifting capacity
800 kg
Vacuum circuit
Dual-circuit
Own weight
85 kg

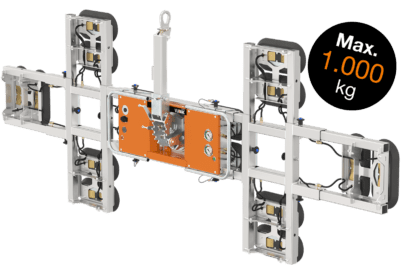

GBXL Glass Lifters
Features
This machine can tilt up to 90 degrees, enabling a locking facility at each 18 degree. It can rotate in 360 degrees and be locked in 4 positions.
Type
GBXL-1000
Lifting capacity
1000 kg
Vacuum circuit
Dual circuit
Own weight
165 kg

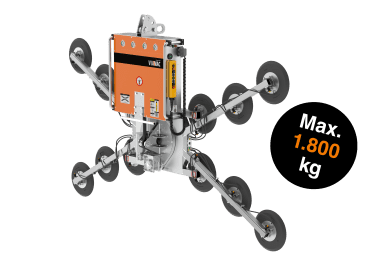

GBH Glass Lifters
Features
The glass lifter can tilt up to 90 degrees using the hydraulic system and can rotate in 360 completing a full circular movement.
Type
GBH-1800
Lifting capacity
1800 kg
Vacuum circuit
Quattro circuit
Own weight
350 kg

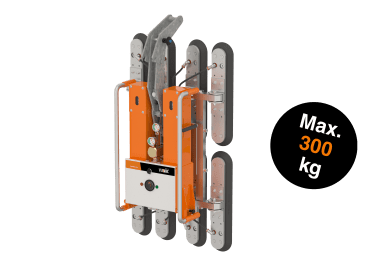

Compact Curved Glass Lifters
Features
Can rotate in complete 360 degree and be locked at each 90 degree. It can tilt up to 90 degrees and is suitable for a minimum radius of 800mm.
Type
GB2-300/800
Lifting capacity
300 kg
Vacuum circuit
Dual-circuit
Own weight
75 kg

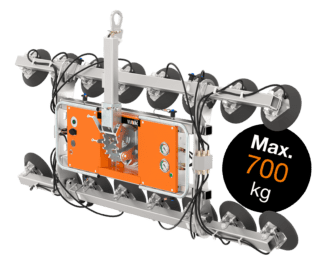

GBLX Curved Glass Lifters
Features
This machine can tilt up to 90 degrees, enabling a locking facility at each 18 degree. It can rotate in 360 degrees and be locked in 4 positions and is suitable for a minimum radius of 800mm
Type
GBXL-700/R800
Lifting capacity
700 kg
Vacuum circuit
Dual circuit
Own weight
150 kg
Why Choose Electric Vaccum Lifters?
Glass Lifter inline electric vacuum lifters for glass are designed for various applications like glass and sandwich panels.
Benefits of Glass Lifters in Today’s Manufacturing and Domestic Environment
Glass lifters can provide exceptional safety improvements for workers and glass materials that are handled. Because, fully manual glass handling may lead to unwarranted disasters, resulting in harm. Therefore reducing property damage should be a high priority, and our glass lifters help you with exactly that!!!
test
Impressive Load Capacity:
Capable of lifting up to 1800 kg for glass and 800 kg for sandwich panels, with lengths reaching up to 28 meters.
Versatile Use:
Perfect for both wall and roof installations, featuring adjustable settings to accommodate different sizes and weights.
Safety Standards:
safety is a non negotiable for us. All our machines and services are fully compliant with all European and Emirates safety regulations, ensuring secure and reliable operation.
Battery-Powered Alerts:
Equipped with an alarm that activates when vacuum pressure drops, safeguarding both users and materials.
User-Friendly Design:
The device is crafted with easily replaceable components and a straightforward interface, making it suitable for a variety of project requirements.
Improved precision:
Our glass lifters take the word decision to the next level by elevating the glass lifting experience.
How to choose the right choice for you
Consider the weight of the glass, size, and thickness to get a better understanding of what you are dealing with. Additionally, suction power plays an important role in decision making. Thirdly, portability as well as ease of use.
GLASS LIFTER with our industry leading experts are able to meet all requirements of our clientele, be it in construction or manufacturing. Our partnership with industry leaders like Viavac and Tgt has led to great assurance in quality products and services in this field. To make an educated decision, feel free to contact us at ……
Why Partner with Us?
Frequently Asked Questions
How much load can a glass lifter support?
The load capacity of a glass lifter largely depends on the model and the type. Our glass lifters can support the load that ranges from 800 kg to 1800kg.
What are the processes involved in the maintenance of the glass lifter?
The regular maintenance of the glass lifter involves the inspection of the suction cup, check up of the vacuum system, lubrication of the moving parts, verify the vacuum pump functionality, inspection of hoses and connections and ensure that all the safety features are in proper operation.
What is the power source of the glass lifters?
Depending on the model various power sources can be used which includes electric, pneumatic and manual.
Can the glass lifters be used vertically and horizontally?
Yes, most of the modern glass lifters are designed for horizontal and vertical lifting.
